| Author | Message | ||
     John Rowney Experienced User Username: johnrowney Post Number: 176 Registered: 02-2015 |

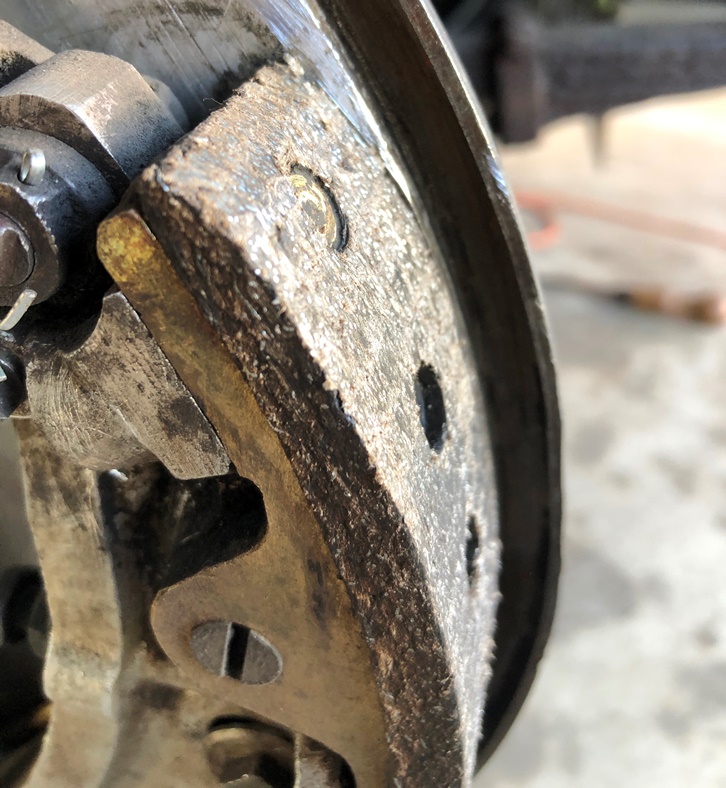

My 1938 Wraith, WXA68, had a FTP at Sawtell on the way home from a fabulous 20-Ghost Club tour of Tasmania a couple of weeks ago. The problem was in the front left brake drum, which I will probably describe in detail at a later date in Praeclarum. Anyway, I am fixing everything which was a problem, and I have decided to reline the brake shoes, since the thinnest part of the lining was only 1.2 mm above the rivet. Does anyone know what the original thickness of the brake lining material should be? I cannot find any reference anywhere. I relined the back shoes 9 years ago and everything with them worked well, but I have no records of the lining thickness used. Obviously, with modern techniques, I won't have rivets to be worried about, so the same thickness of the lining I have now will serve WXA68 for many more years. | ||
| Koen Dierckxsens New User Username: prewarrb Post Number: 8 Registered: 04-2024 |
John, for prewar Wraith, the full original thickness of new brake linings on main and auxiliary shoes would have been .375inch. If you have still a reasonable amount of lining left (1.2mm above rivets), then it may be advisable to think twice before renewal. Indeed. 1. these linings do wear VERY slowly - check this with your annual mileage, you may have enough for the next 10 years ? 2. linings that are well bedded in, give best braking performance 3. it is not uncommon for relining of prewar RR-brakes to generate undesired consequences, poor braking performance, brake judder, etc... For a decent job you will need a circumferential cutter, use correct lining material (not too hard, not too soft), to name but a few issues... Good luck! Koen, | ||
| John Rowney Experienced User Username: johnrowney Post Number: 177 Registered: 02-2015 |
Thanks, Koen I had the same sort of thoughts about leaving things as they are, but friends suggested that I reline the brakes since I had everything off. I will be doing about 5000 miles per year for the next couple of years if all our plans work out, so I am still uncertain about how long the 1.2 mm clearance will last. The guy who is going to do the relining went on holidays the day after I dropped the shoes into the workshop, and so I won't be able to get them relined for a couple of weeks. Next week I will go back to the brake workshop and measure the overall thickness of the linings. Perhaps this will tell me something regarding the original 0.375 inch lining thickness. This is the first time I have ever seen an estimation of the original lining thickness, so I look forward to seeing how much may have been worn from the front brakes - probably over 40 years of driving since the car was rebuilt. In my memory, I think that the thickness of the existing lining was less than 1/4". However, nothing is better that a real measurement using a vernier. I will keep everyone informed when I get an accurate measurement. | ||
| Koen Dierckxsens New User Username: prewarrb Post Number: 9 Registered: 04-2024 |
John, I have given you original thickness for new linings before riveting to the shoes. It may well be clear that after mounting the whole lot on a car and passing with a circumferential cutter, the final thickness for new linings on a car may have been less ! Thx for feedback, that is very instructive here. Regards, Koen, | ||
| John Rowney Experienced User Username: johnrowney Post Number: 179 Registered: 02-2015 |

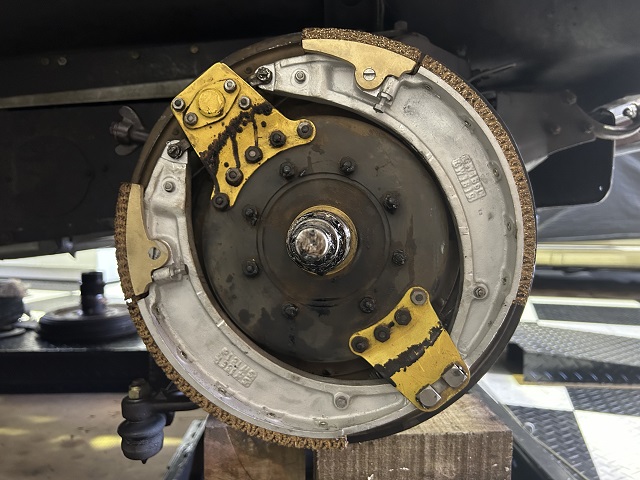

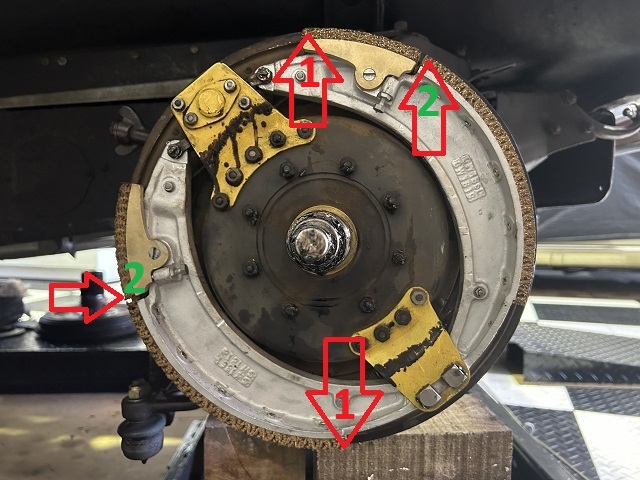

Hi Koen I finally got to the brake workshop and did a few measurements of the existing brake linings. They ranged from 8.3 mm down to a low of 4.4 mm. Compared to your original of 0.375", which is around 9.5 mm, it would look like the 0.375" would probably have been my original thickness. The huge differences in wear is a little hard to understand except that the areas of most wear are on the small noise reducing parts of the shoes. It will be a couple of weeks before the guy who does the work gets back from holiday. I will let you know what happens and what he thinks and does. |
